Descripción
Camera | ||
---|---|---|
Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
Effective Pixels: | 1920(H)x1080(V) | |
Signal System: | PAL/NTSC | |
Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
|
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
AGC: | Auto/Manual | |
WDR: | DWDR | |
Shutter Time: | 1/1 s to 1/30,000 s | |
Day& Night: | ICR | |
Digital Zoom: | 16× | |
Privacy Masking: | 8 privacy masks programmable | |
Auto Focus: | Auto / Semi-automatic / Manual |
Lens | ||
---|---|---|
Focal Length: | 4.8 mm to 120 mm, 25 × Optical | |
Zoom Speed: | Approx. 3.2 s (optical, wide to tele) | |
Angle of View: | 57.6° to 2.5° (wide to tele) | |
Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
Aperture Range: | F 1.6 to F 3.5 |
Pan & Tilt | ||
---|---|---|
Pan Range: | 360° continuous | |
Pan Speed: | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
|
Tilt Range: | -15°-90° (Auto Flip ) | |
Tilt Speed: | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
|
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
Patrol: | 10 patrols, up to 32 presets per patrol | |
Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
Power loss recovery: | Support | |
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
PTZ Position Display: | ON/OFF |
Infrared | ||
---|---|---|
IR Distance: | 100m | |
IR irradiation angle: | Adjustable by zoom |
Input & Output | ||
---|---|---|
Turbo HD Output: | 1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC) | |
UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) |
General | ||
---|---|---|
Menu Language: | English | |
Power Supply: | 12V DC | |
Power Consumption: | Max.20 W (IR: 7 W) | |
Working Temperature/Humidity: | Working Temperature: -30°C to 65°C (-22°F to 149°F) Working Humidity: ≤ 90% |
|
Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|

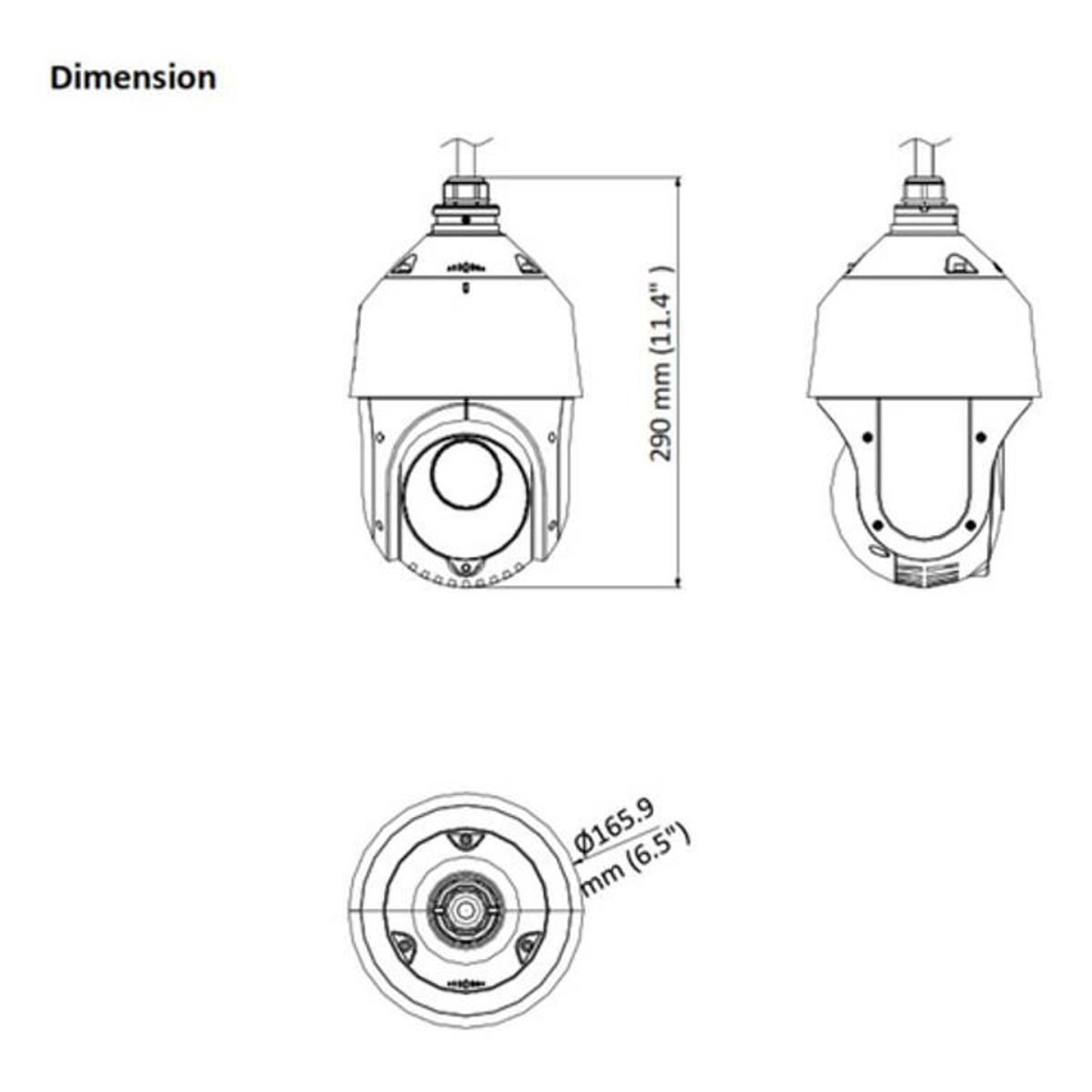

Dimensions: | Ø 165.9 mm × 290 mm (Ø 6.5″ × 11.4″) | |
Weight (approx.): | 2 kg (4.41 lb) |
